HSM 904ZL

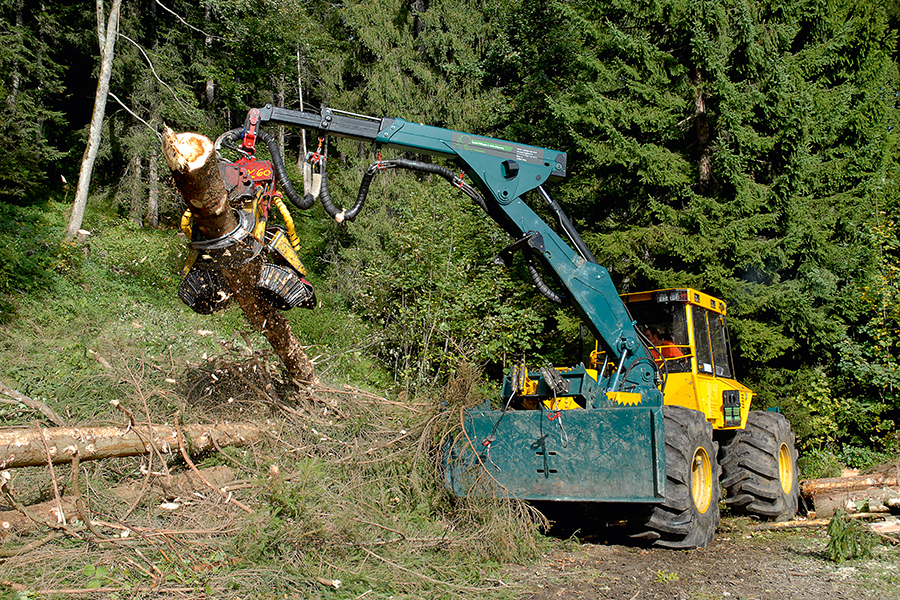

The HSM 904ZL is the most powerful thick trunk timber machine available on the crane forwarder market. Designed to tackle thick trunk timber with resilience and no compromise, it offers unimaginable opportunities with its extremely strong hydraulic motor pivot mechanism and crane from our own production. The HSM 904ZL is therefore suitable to attach large harvester units. It offers incredible stability thanks to the low mounting position of the crane and the long wheelbase. The winch is located behind the crane, which permits unimpaired winch operation on all HSM rear blade versions. The 904ZL offers the highest level of productivity with thick trunk timber and still enables forwarding with ground protection.

Engine (6 cylinders):
  • VOLVO
    TAD871VE EU Stage IV / EPA T4f
    Power: 185 kW (252 HP) at 1600 rpm
    max. revolution: 1150 Nm at 1100 - 1500 rpm
    max. torque: 1160 Nm at 1200 rpm
    Displacement: 7,7 liter

    Optional:
  • VOLVO
    TAD872VE EU Stage IV / EPA T4f
    Power: 210 kW (286 HP) at 1700 rpm
    max. revolution: 1225 Nm at 1100 - 1600 rpm
    max. torque: 1235 Nm at 1350 rpm
    Displacement: 7,7 liter
Transmission:
  • 904H: HSM High Speed Drive (71 series)
    speed at 1st gear 0-14 km/h
  • 904ZF: ZF 6WG-190 load switching converter transmission
    6 forward gears, 3 reverse gears
Axles:
  • Planetary axles
  • 100% separately selectable differential locks, front and rear
Brake:
  • 2-circuit brake, disk brake running in an oil bath
  • Spring-loaded parking brake
Steering:
  • Articulated steering with 2 cylinders, 45° steering angle
Tank capacity:
  904H: 904ZF:
• Diesel: 210 l 225 l
• AdBlue: 45 l 45 l
• Hydraulic fluid: 110 l 150 l
Hydraulics:
  • Load sensing
  • Variable pump (working pump) 904H:
    flow rate: 304 l/min at 1600 rpm
    pressure: up to max. 350 bar
  • Variable pump (working pump) 904ZF:
    flow rate: 224 l/min at 1600 rpm
    pressure: up to max. 350 bar
  • Hydraulic fluid:
    Saturated, synthetic ester
    Panolin HLP SYNTH with Kleenoil
    Microfiltration; WGK 1
Cabin:
  • HSM Panorama comfort cab
  • ROPS, FOPS, OPS tested safety cab
  • Swivel seat device, air-suspended comfort seat
  • heating/air-conditioning
Electrical system / Instruments:
  • HSM Ecommand colour-display
  • 5 operator programs + factory setting
  • diagnosis-tool and error-indication
  • graphic support at parameter editing
  • generator 110 A (28 V)
  • 2 service-free dry batteries á 55 Ah
Standard equipment:
  • 12 LED work lamps
  • 24 V - 12 V voltage transformer, radio with CD player, fire extinguisher, first-aid kit, warning triangle, tool set
  • Torsion lock with 2 hydraulic cylinders
Special accessories:
  • Tiltable front polder shield, front loader (Hauer), trailer hitch, outer hydraulic connection, remote control for cable winch, wireless driving, auxiliary heating, sun blinds, seat damping pad
  • Additional accessories on request
Winches:
  • Standard:
    Adler EHY 10 (1 x 100 kN) single-drum winch
    Max. cable take-up of 14 mm, 80 m
  • Optional:
    Adler HY 20 (2 x 100 kN) double-drum winch
    Max. cable take-up of 14 mm, 100 m
    Adler HY 24-O (2 x 120 kN) double-drum winch
    Max. cable take-up of 14 mm, 130 m
    Adler HY 32-O (2 x 160 kN) double-drum winch
    Max. cable take-up of 16 mm, 100 m
    Adler HY 32-LO double-drum winch
Weight:
  • from 14 700 kg
Forwarder:
  • Standard:
    Articulated arm with simple telescope: 6,1 m range
    Gross lifting moment: 270 kNm
    Swivel range: 210°
    Pivoting moment: 80 kNm
    Gripper cross-section: 1.2 m2 (opt. 0.9 m2)
  • Optional:
    Articulated arm with double telescope: 7.5 m range
Tyres:
    Serial
24,5-32

30,5-32
904H D 1831 1857
  B* 2430 2730
  H 3500 3507
  F 672 679

904ZF H 3550 3557
  F 545 552

* B: minimum machine width (dimensions in mm)

Standard equipment:
  • Fixed front polder shield, 2000 mm wide
  • Straight shield as sprag brake
Special equipment:
  • Hydraulically height-adjustable roller block
  • "Skidder France" version pulley
  • Straight shield „France“
  • Engine bonnet protection and brush guard made from tubing
  • Additional accessories on request
HSM Crane-list EPSILON

X = available with surcharge, O = standard equipment, # = not available

EPSILON

Crane type Lifting
moment
Range Gripper
type
904F / Kombi
M70 F80 102/68 kNm 8,0 m FG43S O
M70 F86 102/68 kNm 8,6 m FG43S X
M70 F101 102/65 kNm 10,1 m FG43S X
M80 F80 114/79 kNm 8,0 m FG43S X
M80 F86 114/79 kNm 8,6 m FG43S X
M80 F101 114/75 kNm 10,1 m FG43S X
S100 F80 128/91 kNm 8,0 m FG43S X
S100 F86 128/90 kNm 8,6 m FG43S X
S100 F101 128/86 kNm 10,1 m FG43S X
S110 F80 143/104 kNm 8,0 m FG43S X
S110 F86 143/104 kNm 8,6 m FG43S X
S110 F101 143/100 kNm 10,1 m FG43S X
X120 F80 159/111 kNm 8,0 m FG43S X
X120 F86 159/110 kNm 8,6 m FG43S X
X120 F102 159/107 kNm 10,2 m FG43S X
X140 F80 173/123 kNm 8,0 m FG43S X
X140 F86 173/122 kNm 8,6 m FG43S X
X140 F102 173/119 kNm 10,2 m FG43S X
HSM Crane-list Mesera

X = available with surcharge, O = standard equipment, # = not available

Mesera

Crane type Lifting
moment
Range Gripper
type
904F / Kombi
F71 F72 99/75 kNm 7,2 m FG43S X
F71 FT85 99/70 kNm 8,5 m FG43S X
F71 FT100 99/66 kNm 10,0 m FG43S X
F71 FT100i 99/66 kNm 10,0 m FG43S X
F83 F72 106/82 kNm 7,2 m FG43S X
F83 FT85 106/76 kNm 8,5 m FG43S X
F83 FT100i 106/73 kNm 10,0 m FG43S X
M 92 F80i 130/84 kNm 8,0 m FG43S X
M 92 FT86i 130/84 kNm 8,6 m FG43S X
M 92 FT100i 130/84 kNm 10,0 m FG43S X
F111 F72 151/111 kNm 7,2 m FG43S X
F111 F85 151/100 kNm 8,5 m FG43S X
F111 FT85 151/100 kNm 8,5 m FG43S X
F111 FT91 151/98 kNm 9,1 m FG43S X
F111 FT100 151/101 kNm 10,0 m FG43S X
M122 F85i 155/110 kNm 8,5 m FG43S X
M122 F96i 155/ - kNm 9,6 m FG43S X
M122 FT100i 155/ - kNm 10,0 m FG43S X
M142 F85i 178/132 kNm 8,5 m FG43S X
M142 F96i 178/124 kNm 9,6 m FG43S X
M142 FT100i 178/ - kNm 10,0 m FG43S X
The variable rear

Last stanchion variable in "short" position

Last stanchion variable in "centre" position

Last stanchion variable in "long" position

Quick-change twin stanchion for 2 x 2 or 2 x 2.5 m wood (not for 805F short version)

Height-adjustable pulleys up to 2 m

Rope forwarding possible without reconfiguring the stanchion

Log forwarding with quick-change clamping workbench

Rope forwarding possible without reconfiguring the clamping workbench
