HSM 208F 12 t

The strong and agile 208F 12 t forwarder, with the option of loading 2 piles of 3 metre timber, is an exciting prospect thanks to its very high level of flexibility, good stability and low external width. The powerful, economic Iveco 6-cylinder engine with its innovative 2 motor hydrostatic drive convinces every customer. The efficient hydraulic system, powerful crane and well proportioned stanchion rack assure the highest level of productivity.

Brake:
  • Brake with 2-circles, oil-cooled multiple-disc power-brake
  • Spring accumulator – parking brake
Steering:
  • Articulated frame steering with 2 cylinders
  • Steering angle 45°
Cabin:
  • Raisable to side on parallel linkages
  • ROPS, FOPS, OPS tested
  • Rotary seat with pedals in front and rear
  • Wiper in front and rear, optional on the side
  • Air cushioned seat with seat heating
  • Hot-water heating
  • Air conditioning
Electrical system / Instruments:
  • HSM Ecommand colour-display
  • 5 operator programs + factory setting
  • Diagnosis-tool and error-indication
  • Graphic support at parameter editing
  • Generator 110 A (28 V)
  • 2 service-free dry batteries á 75 Ah
Power train:
  • NAF 2 speed transfer gearbox
  • HSM High Speed Drive (serial 71); speed at 1st gear 0-14 km/h
Standard equipment:
  • 14 LED-working headlight at cabin
  • 4 working headlights at crane
  • Potential transformer 24 V - 12 V
  • Radio with CD
  • Fire extinguisher
  • First aid kit
  • Warning triangle
  • Tool kit
  • Cooling box
  • Reversing camera with color monitor
  • Rear headlights
  • Twist lock with 2 hydraulic cylinders
Special equipment:
  • Front dozer-blade
  • Tandem axle lift (Bogielift) front
  • Turnable rung
  • Last rung plugged
  • Tiltable crane
  • Quick-change system for rungs
  • Clambunk
  • Auxiliary heating
  • Bogie-tracks
  • Radio control for winch
  • Drive by radio
  • Sun blinds
  • Pluggable front grid
  • Cab suspension
  • Other options on request

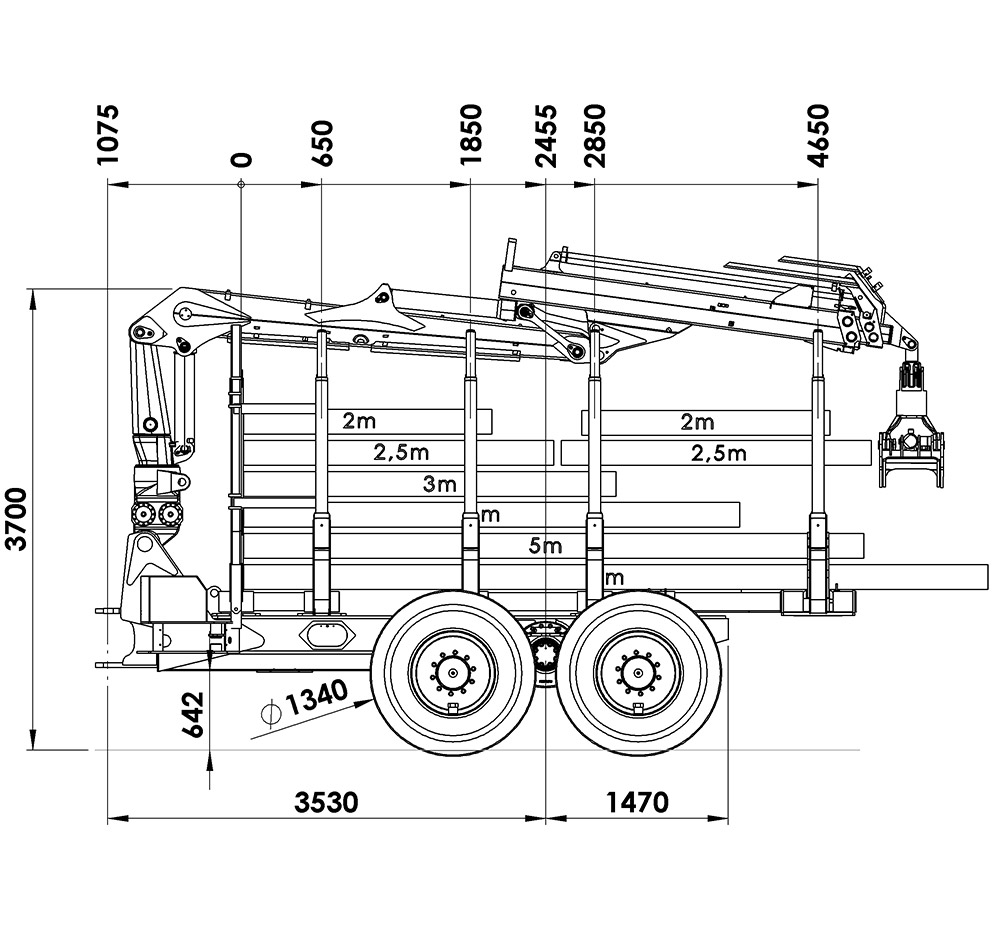

12 t rear frame with tilt-crane
Diagrammed:
  • Crane tiltable with angle - 5° / + 26°
  • Grid hydraulic moveable
  • Rungs relocatable
  • Turnable last rung
Engine:
  • VOLVO
    TAD871VE EU Stage IV / EPA T4f
    Power: 185 kW (252 HP) at 1600 rpm
    max. revolution: 1150 Nm at 1100 - 1500 rpm
    max. torque: 1160 Nm at 1200 rpm
    Displacement: 7,7 liter

    Optional:

  • VOLVO
    TAD872VE EU Stage IV / EPA T4f
    Power: 210 kW (286 HP) at 1700 rpm
    max. revolution: 1225 Nm at 1100 - 1600 rpm
    max. torque: 1235 Nm at 1350 rpm
    Displacement: 7,7 liter
Hydraulic system:
  • Load sensing
  • Variable pump (working pump):
    Flow rate:  304 l/min at 1600 rpm
    Pressure:  up to max. 350 bar
  • Hydraulic fluid: saturated, synthetic ester Panolin HLP
    SYNTH with Kleenoil microfiltration; WGK 1
Tank capacity:
  11 t / 12 t 14 t
Diesel: 190 l 225 l
AdBlue: 45 l 45 l
Hydraulic fluid: 130 l 130 l
Weight:
  • from 16 900 kg
    weight distribution: front axle: 60 %, rear axle: 40 %
Tyres:
  Width: Overall width: Width for tracks:
Serial: 710/45-26,5 2600 mm 2700 mm
Optional: 600/55-26,5 2400 mm 2500 mm
  800/40-26,5 2700 mm 2800 mm
  870/40-26,5 2900 mm 3000 mm
  54x37-25 2900 mm 3000 mm
Axles:
  • NAF portal-bogie-axles
  • Front: switchable differential lock 100 %
  • Rear: switchable differential lock 100 %
Crane:
  • Serial: Epsilon M70 F80
  • Other cranes behold crane-list
Loading area:
  • 4 rungs, last rung extensible
  • Length: 3700 mm - 4650 mm / option 5050 (2x3 m)
  • Cross section: 4,0 m² / option 4,3 m²
  • Load capacity: 12 t
HSM Crane-list EPSILON

X = available against surcharge, O = standard equipement, # = not available

EPSILON

Crane typ Lifting
moment
Range Gripper
type
208F 12 t
C60 F69 82/63 kNm 6,9 m FG43S #
C60 F86 82/51 kNm 8,6 m FG43S #
M70 F80 102/68 kNm 8,0 m FG43S O
M70 F86 102/68 kNm 8,6 m FG43S X
M70 F101 102/65 kNm 10,1 m FG43S X
M80 F80 114/79 kNm 8,0 m FG43S X
M80 F86 114/79 kNm 8,6 m FG43S X
M80 F101 114/75 kNm 10,1 m FG43S X
S100 F80 128/91 kNm 8,0 m FG43S X
S100 F86 128/90 kNm 8,6 m FG43S X
S100 F101 128/86 kNm 10,1 m FG43S X
S110 F80 143/104 kNm 8,0 m FG43S X
S110 F86 143/104 kNm 8,6 m FG43S X
S110 F101 143/100 kNm 10,1 m FG43S X
X120 F80 159/111 kNm 8,0 m FG43S X
X120 F86 159/110 kNm 8,6 m FG43S X
X120 F102 159/107 kNm 10,2 m FG43S X
X140 F80 173/123 kNm 8,0 m FG43S #
X140 F86 173/122 kNm 8,6 m FG43S #
X140 F102 173/119 kNm 10,2 m FG43S #
Low crane column
(height 1730 mm)
series at steep slope
and Kombi
      X
HSM Crane-list Mesera

X = available against surcharge, O = standard equipement, # = not available

Mesera

Crane typ Lifting
moment
Range Gripper
type
208F 12 t
F59 F72 78/56 kNm 7,2 m FG43S #
F59 FT85 78/51 kNm 8,5 m FG43S #
F59 FT100 78/47 kNm 10,0 m FG43S #
F59 FT100i 78/47 kNm 10,0 m FG43S #
F71 F72 99/75 kNm 7,2 m FG43S X
F71 FT85 99/70 kNm 8,5 m FG43S X
F71 FT100 99/66 kNm 10,0 m FG43S X
F71 FT100i 99/66 kNm 10,0 m FG43S X
F83 F72 106/82 kNm 7,2 m FG43S X
F83 FT85 106/76 kNm 8,5 m FG43S X
F83 FT100i 106/73 kNm 10,0 m FG43S X
M 92 F80i 130/84 kNm 8,0 m FG43S X
M 92 FT86i 130/84 kNm 8,6 m FG43S X
M 92 FT100i 130/84 kNm 10,0 m FG43S X
F111 F72 151/111 kNm 7,2 m FG43S X
F111 F85 151/100 kNm 8,5 m FG43S X
F111 FT85 151/100 kNm 8,5 m FG43S X
F111 FT91 151/98 kNm 9,1 m FG43S X
F111 FT100 151/101 kNm 10,0 m FG43S X
M122 F85i 155/110 kNm 8,5 m FG43S X
M122 F96i 155/ - kNm 9,6 m FG43S X
M122 FT100i 155/ - kNm 10,0 m FG43S X
M142 F85i 178/132 kNm 8,5 m FG43S X
M142 F96i 178/124 kNm 9,6 m FG43S X
M142 FT100i 178/ - kNm 10,0 m FG43S X
